Low Frequency, 0.010″

Product Details

MR51-0003-02 with PSA Backing
MR51-0003-02 with PSA Backing

Low Frequency, 0.010″

$139.27

MAST Technologies’ Low Frequency Absorber product series is a magnetically loaded sheet stock having high loss at sub-microwave frequencies. Low Frequency Absorbers are designed with shaped magnetic particles which exhibit high permeability at frequencies from 1 MHz to 3 GHz. The Low Frequency Absorber product line is the thinnest of the MR series products, with standard thicknesses of 0.006″ and 0.020″; other thicknesses and configuration as available.

Sheet Size: 12″ x 24″

This product without adhesive backing: MR51-0003-00

Standard Lead-Time: Ships next business day

SKU: MR51-0003-02 Categories: , , ,

Description

Electrical Performance:

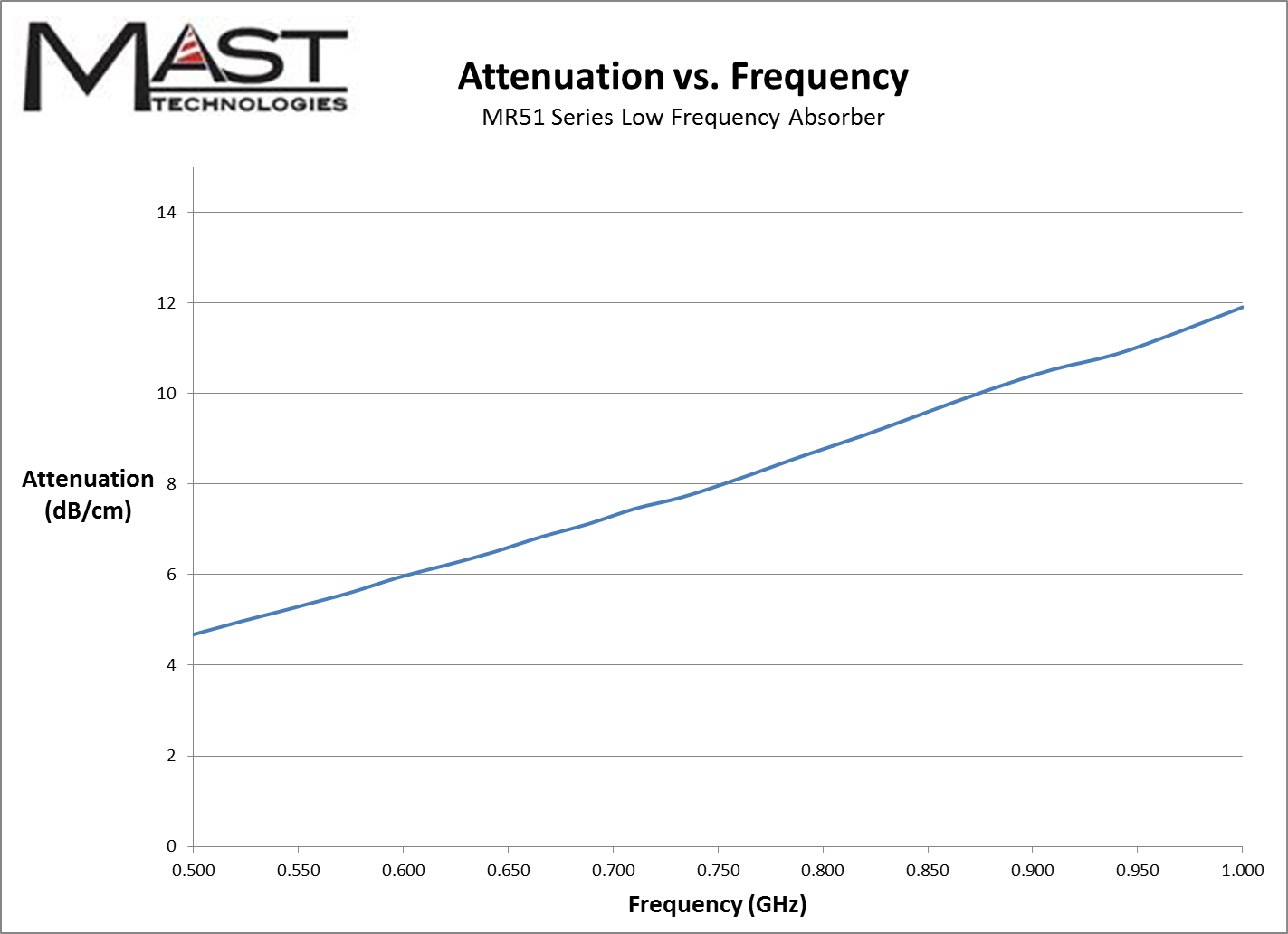

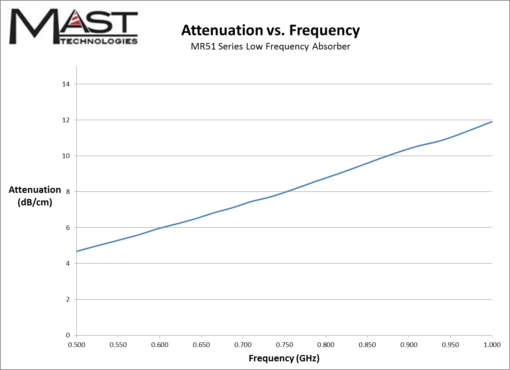

The performance plot above illustrates the typical insertion loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 103.

Typical Properties:
Thickness: 0.010″ (0.25mm)
Adhesive Thickness: 0.002″ (0.05mm)
Color: Dark Grey
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94-V0
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 24″

Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)

Additional Image(s):

Additional information

Weight 2 lbs
Dimensions 24 × 24 × 0.125 in
Adhesive

Yes
Frequency

0.05 to 4 GHz
Thickness

0.010" (0.25mm)
Product Type

Low Frequency
Product Size

12"x24" (305x610mm)
Frequency Range

0.05 to 1 GHz, 1 to 18 GHz
Thickness Range

0.006" – 0.040"
