$99.07

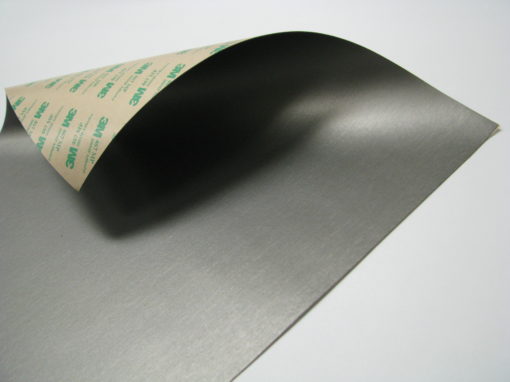

MAST Technologies’ Low Frequency Absorber product series is a magnetically loaded sheet stock having high loss at sub-microwave frequencies. Low Frequency Absorbers are designed with shaped magnetic particles which exhibit high permeability at frequencies from 1 MHz to 3 GHz. The Low Frequency Absorber product line is the thinnest of the MR series products, with standard thicknesses of 0.006″ and 0.020″; other thicknesses and configuration as available.
Sheet Size: 12″ x 24″
This product with adhesive backing: MR51-0001-02
Standard Lead-Time: Ships next business day
Electrical Performance:

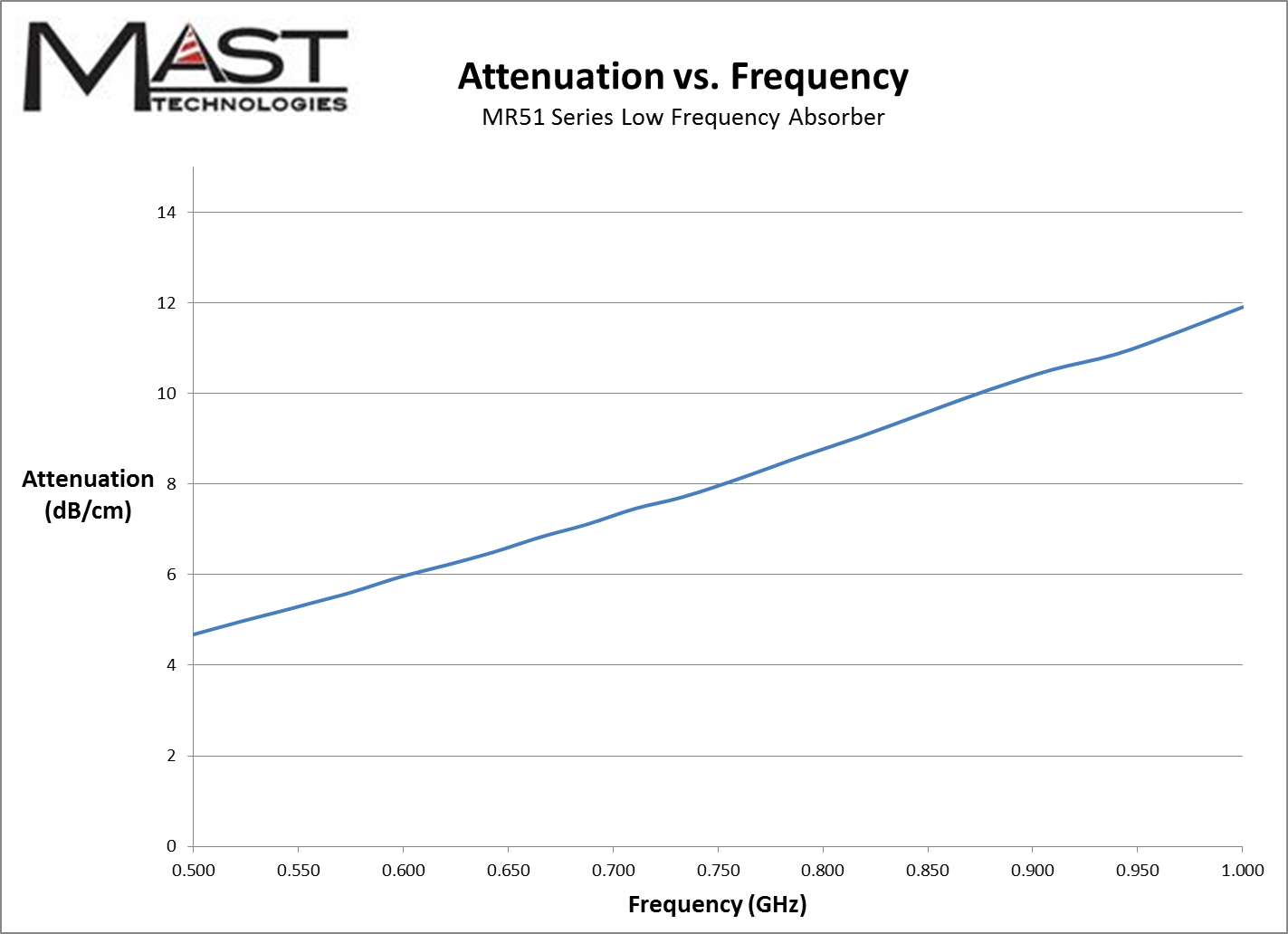

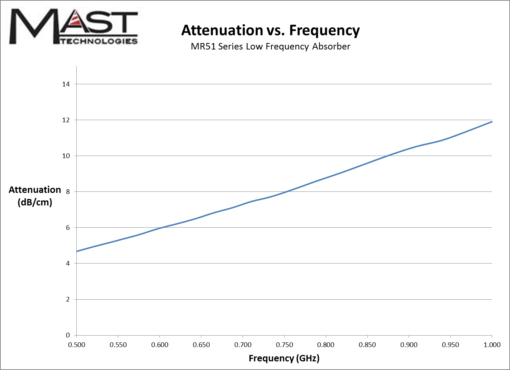

The performance plot above illustrates the typical insertion loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 103.
Typical Properties:
Thickness: 0.006″ (0.15mm)
Adhesive Thickness: 0.002″ (0.05mm)
Color: Dark Grey
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94-V0
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 24″
Downloads
Material Safety Data Sheet (MSDS)
Additional Image(s):
| Weight | 2 lbs |
|---|---|
| Dimensions | 24 × 24 × 0.125 in |
| Adhesive | No |
| Frequency | 0.05 to 4 GHz |
| Thickness | 0.006" (0.15mm) |
| Product Type | Low Frequency |
| Product Size | 12"x24" (305x610mm) |
| Frequency Range | 0.05 to 1 GHz, 1 to 18 GHz |
| Thickness Range | 0.006" – 0.040" |
