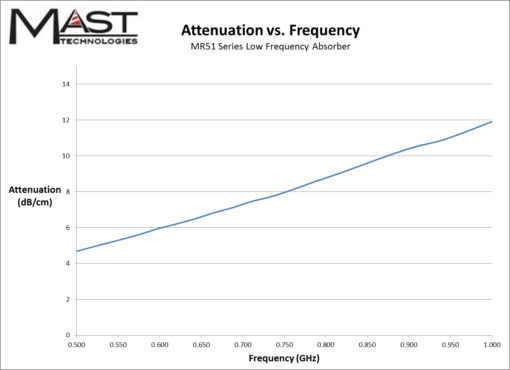

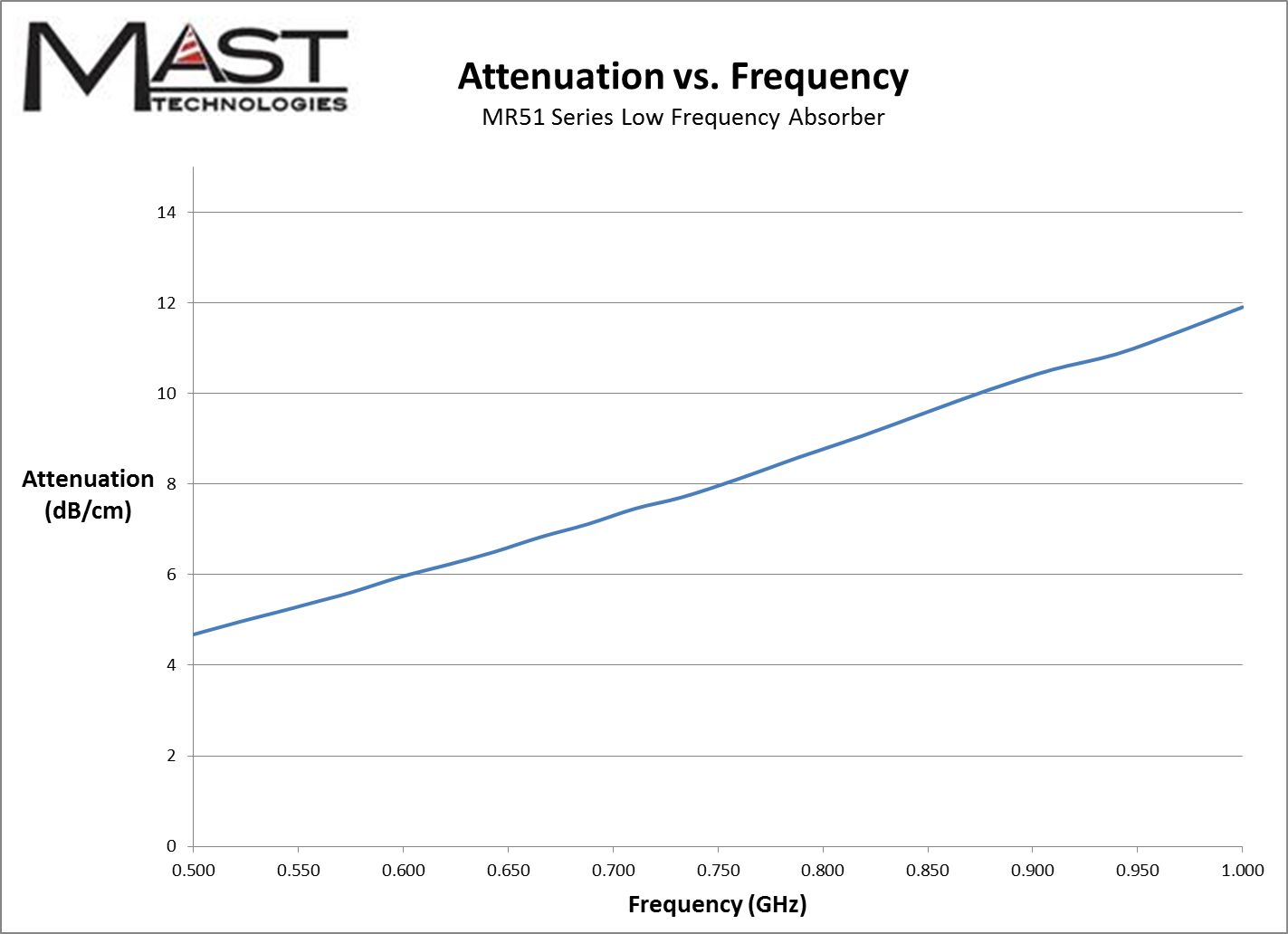

The performance plot above illustrates the typical insertion loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 103.
Thickness: 0.005″ (0.15mm)
Adhesive Thickness: 0.002″ (0.05mm)
Color: Dark Grey
Operating Temperature: -60°F to 375°F
Flammability Rating: UL94-V0
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 24″
