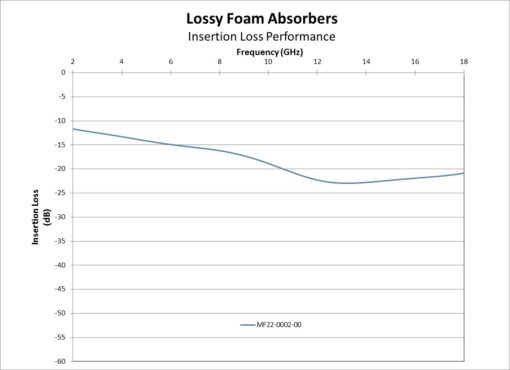

The performance plot below shows the typical insertion loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 103.
Thickness: 0.250″ (6.4mm)
Adhesive Thickness: 0.005″ (0.12mm)
Operating Temperature: -60°F to 250°F
Sheet Sizes: 24″ x 24″
