Tuned Frequency, 20.6 GHz

Product Details

MR11-0031-20 with PSA Backing
MR11-0031-20 with PSA Backing

Tuned Frequency, 20.6 GHz

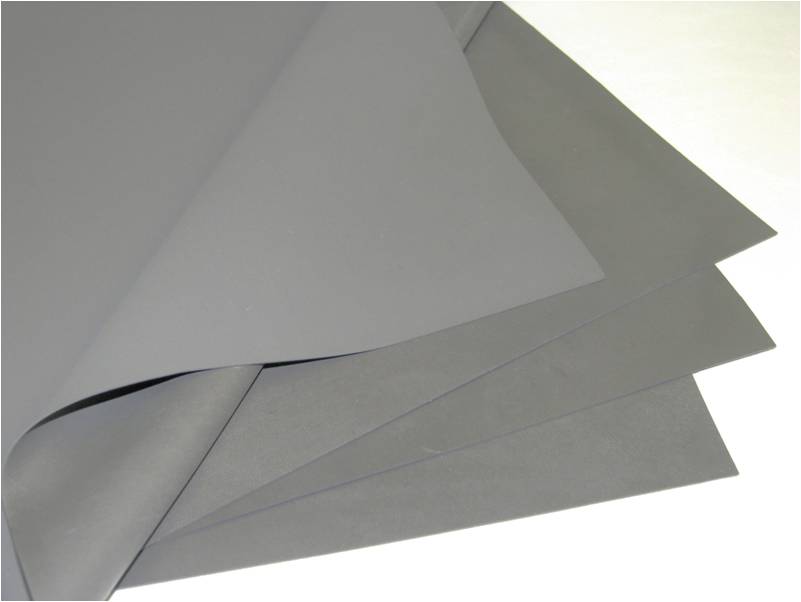

MAST Technologies’ Tuned Frequency Absorber product series is a thin magnetically loaded sheet stock. Tuned Frequency Absorbers, also known as resonant frequency absorbers, provide great reflection loss at a discrete frequency, typically offering 20dB of attenuation. Tuned Frequency Absorbers offer a narrowband of absorption, typically /-10% of the resonant frequency, so are best used when a single discrete frequency is trying to be absorbed. MAST Engineers can tune an absorber to any frequency from 1 to 40 GHz, by simply changing the formulation and thickness.

Sheet Size:
12″ x 12″

Try a 24″ x 24″ Sheet:
MR11-0031-01

This product without adhesive backing:
MR11-0031-00

Standard Lead-Time: Typically ships within 3 business days

Request a Quote
SKU: MR11-0031-20 Categories: , , , ,

Description

Electrical Performance:

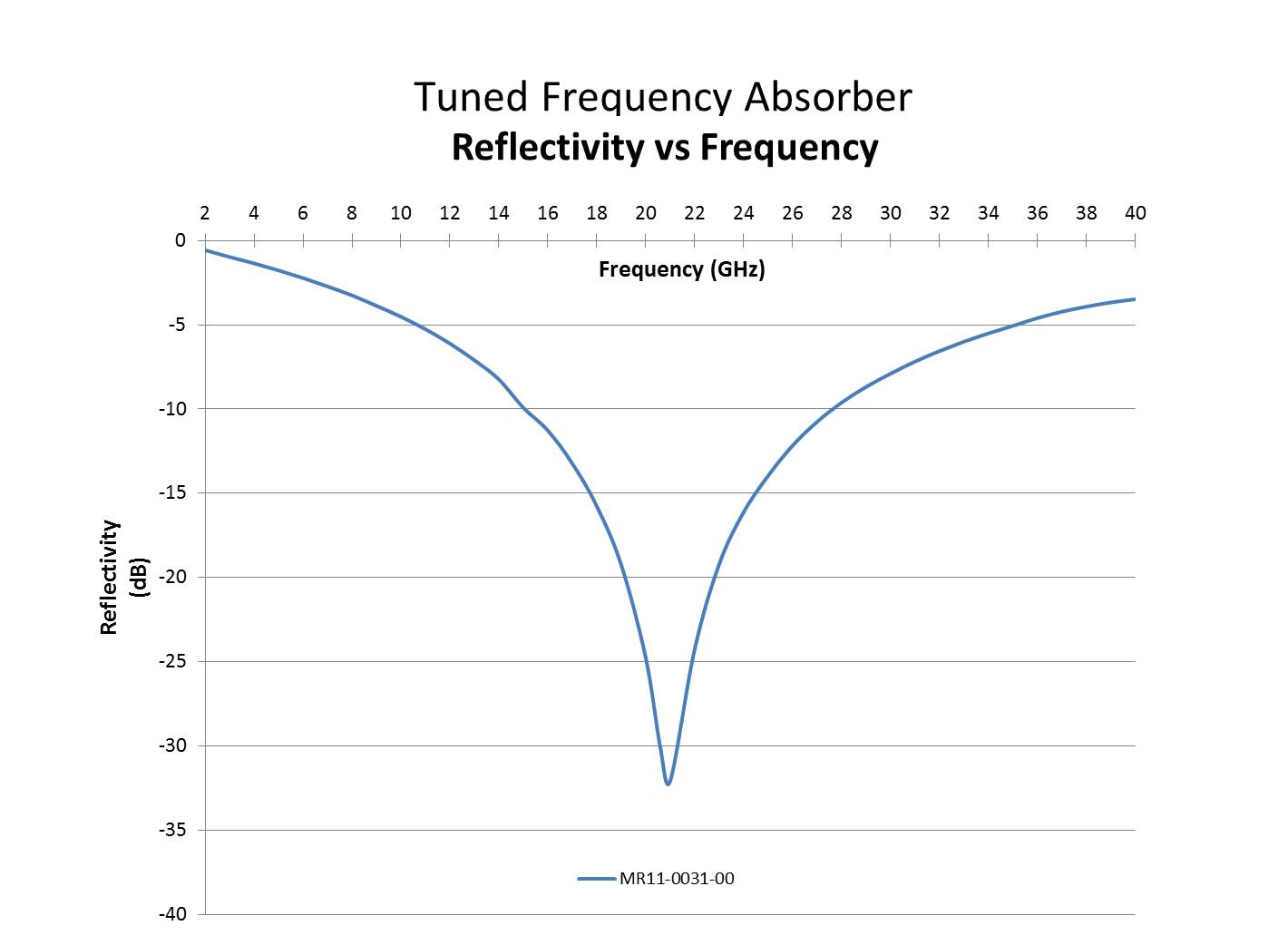

The performance plot above illustrates the typical reflection loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.

Typical Properties:
Frequency: 20.6 GHz
Thickness: 0.043″ (1.1mm)
Adhesive Thickness: 0.005″ (0.05mm)
Color: Dark Grey
Elastomer: Silicone
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94 V-0 (File # E348216)
Sheet Sizes: 12″ x 12″, 24″ x 24″

Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)

Additional information

Weight 2.5 lbs
Dimensions 12 × 12 × 0.125 in
Adhesive

Yes
Frequency

20.6 GHz
Thickness

0.043" (1.09mm)
Product Type

Tuned Frequency
Product Size

12"x12" (305x305mm)
Frequency Range

18 to 40 GHz
Thickness Range

0.006" – 0.040"
