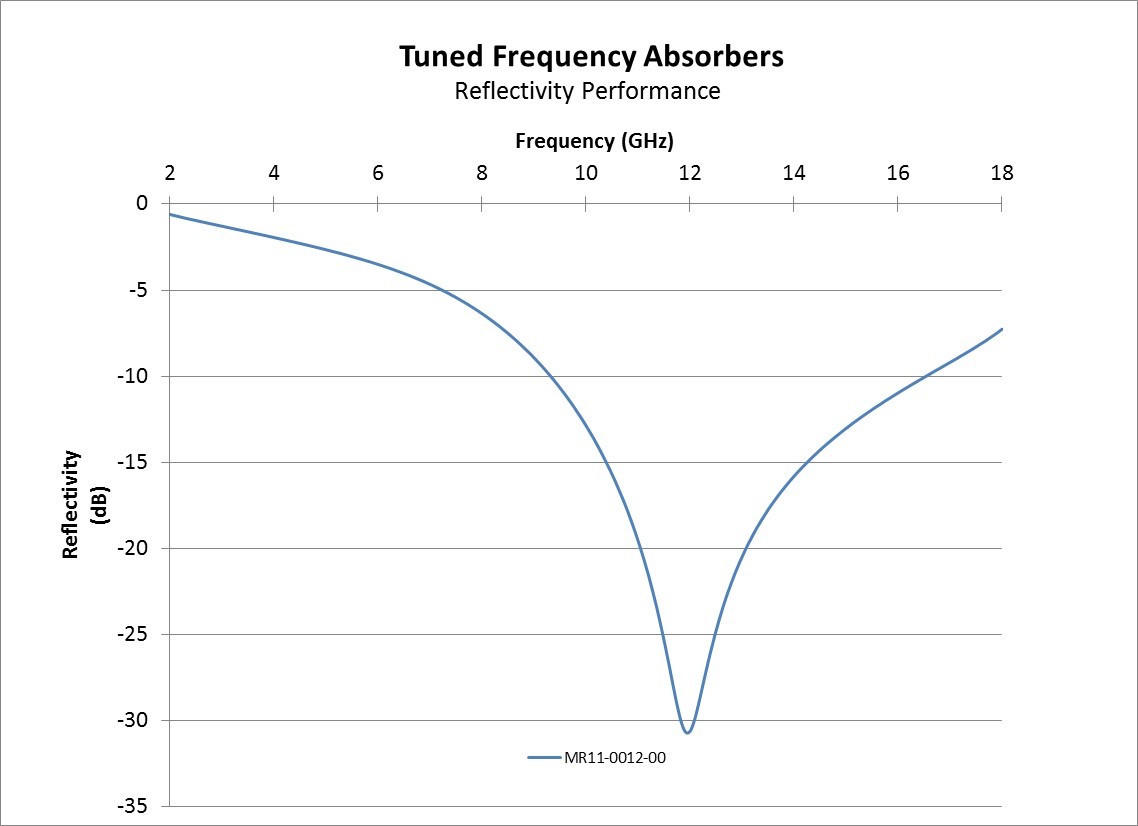

The performance plot above illustrates the typical reflection loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.
Frequency: 12.0 GHz
Thickness: 0.056″ (1.4mm)
Adhesive Thickness: 0.005″ (0.05mm)
Color: Dark Grey
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94 V-0 (File # E348216)
Sheet Sizes: 12″ x 12″, 24″ x 24″
