Description
Electrical Performance:

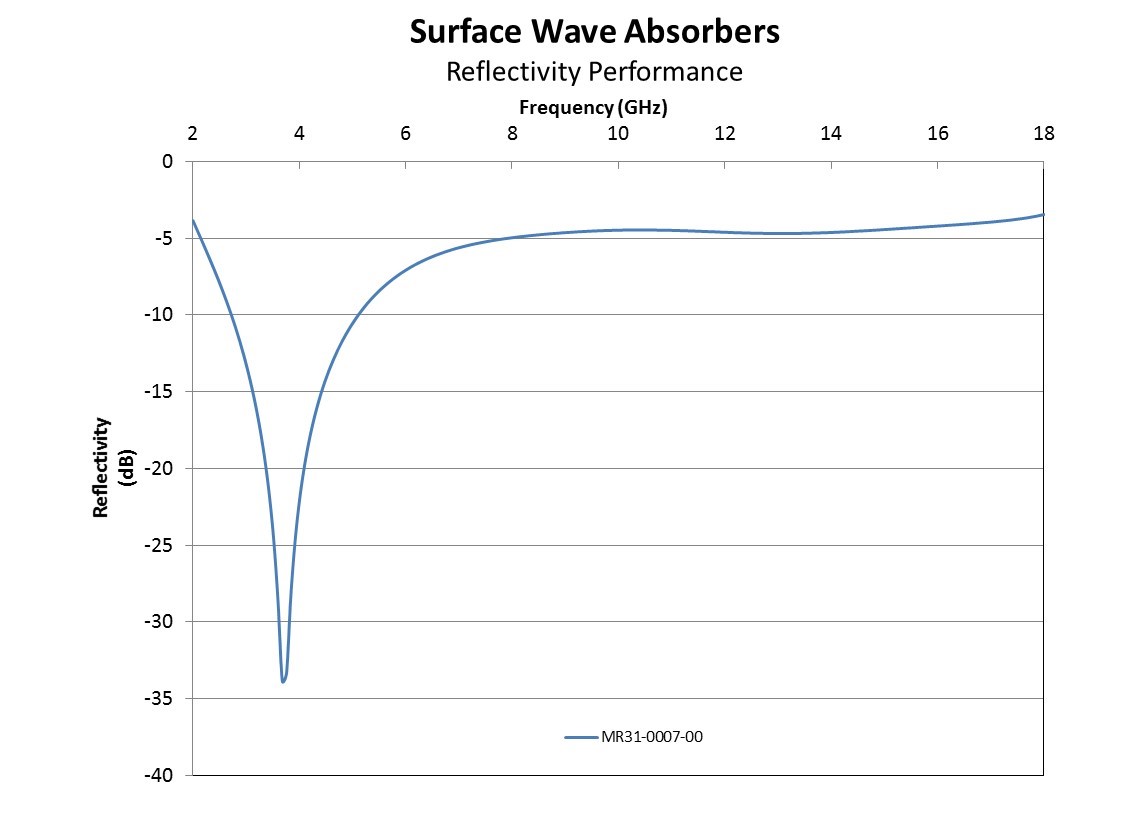

The performance plot above illustrates the typical reflection loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.
Typical Properties:
Thickness: 0.080″ (2.0mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Dark Grey
Elastomer: Silicone
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94 V-0 (File # E348216)
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 12″, 24″ x 24″
Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)
