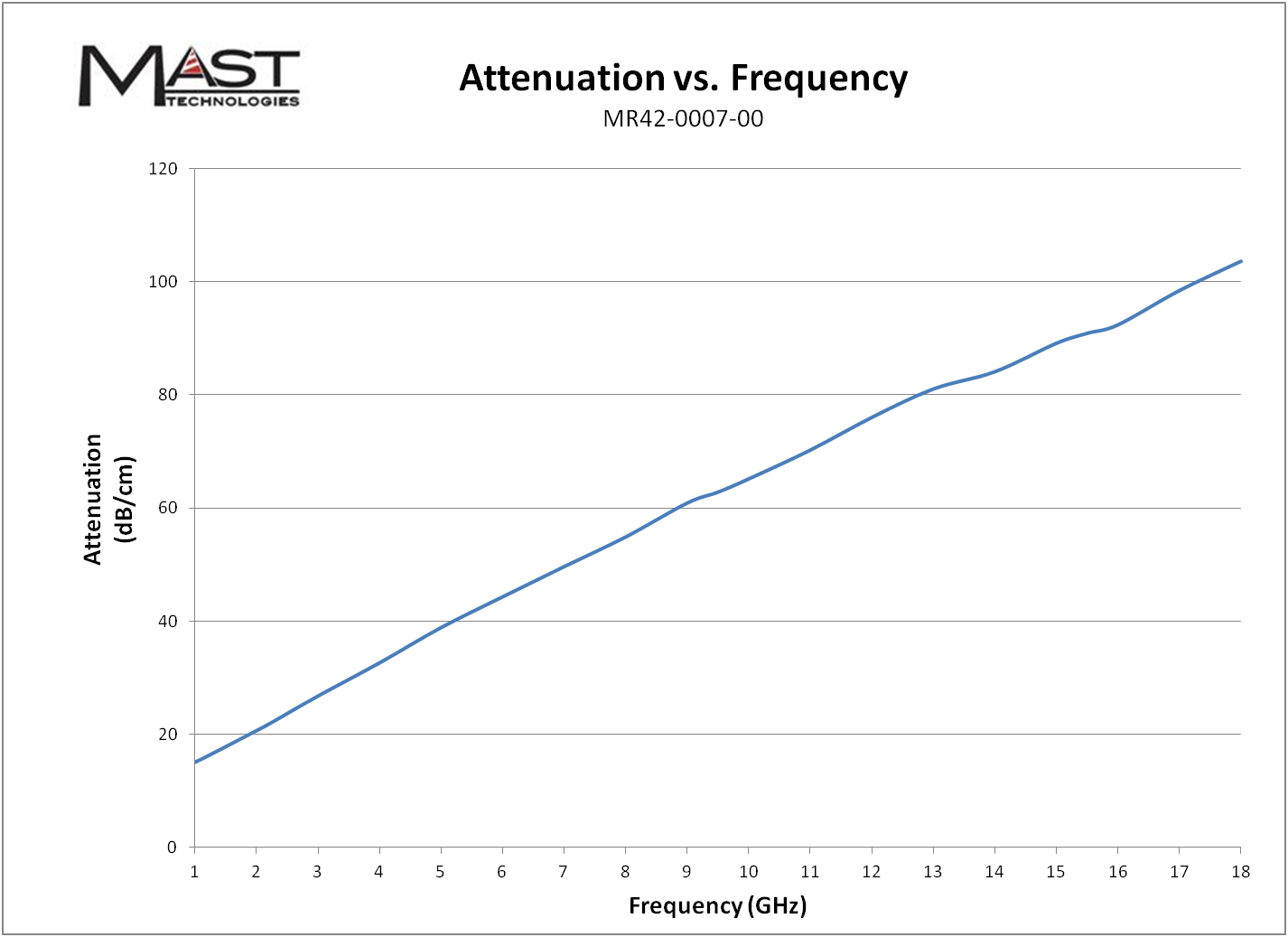

The performance plot above illustrates the typical attenuation versus frequency of this material. Attenuation is calculated at each frequency value based on the complex permittivity and permeability.
Thickness: 0.040″ (1.0mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Dark Grey
Operating Temperature: -60°F to 325°F
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 12″, 24″ x 24″
Technical Data Sheet
