Cavity Resonance, 0.060″

Product Details

MR21-0005-01 with PSA Backing
MR21-0005-01 with PSA Backing

Cavity Resonance, 0.060″

$310.36

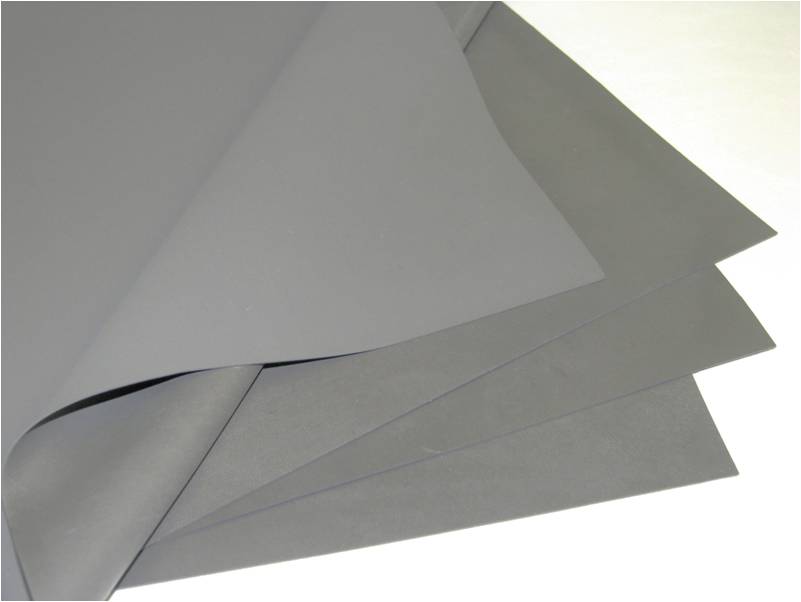

MAST Technologies’ Cavity Resonance Absorber product series is a thin magnetically loaded sheet stock having loss at microwave frequencies, while maintaining the desirable characteristics of elastomeric binders. Cavity Resonance Absorbers are designed to exhibit high loss and are intended to be applied to metal surfaces inside microwave cavities to reduce the Q of the cavity. Cavity Resonance Absorbers attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 20 GHz.

Sheet Size: 24″ x 24″

Try a 12″ x 12″ Sheet: MR21-0005-20

This product without adhesive backing: MR21-0005-00

Standard Lead-Time: Typically ships within 3 business days

SKU: MR21-0005-01 Categories: , , ,

Description

Electrical Performance:

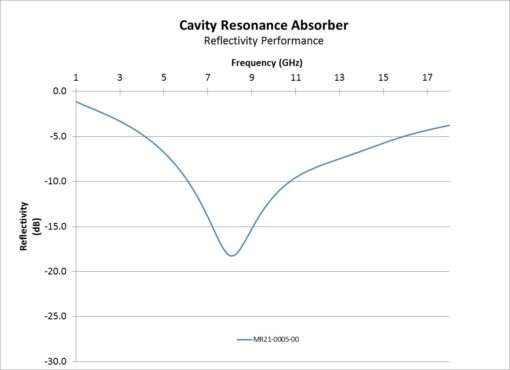

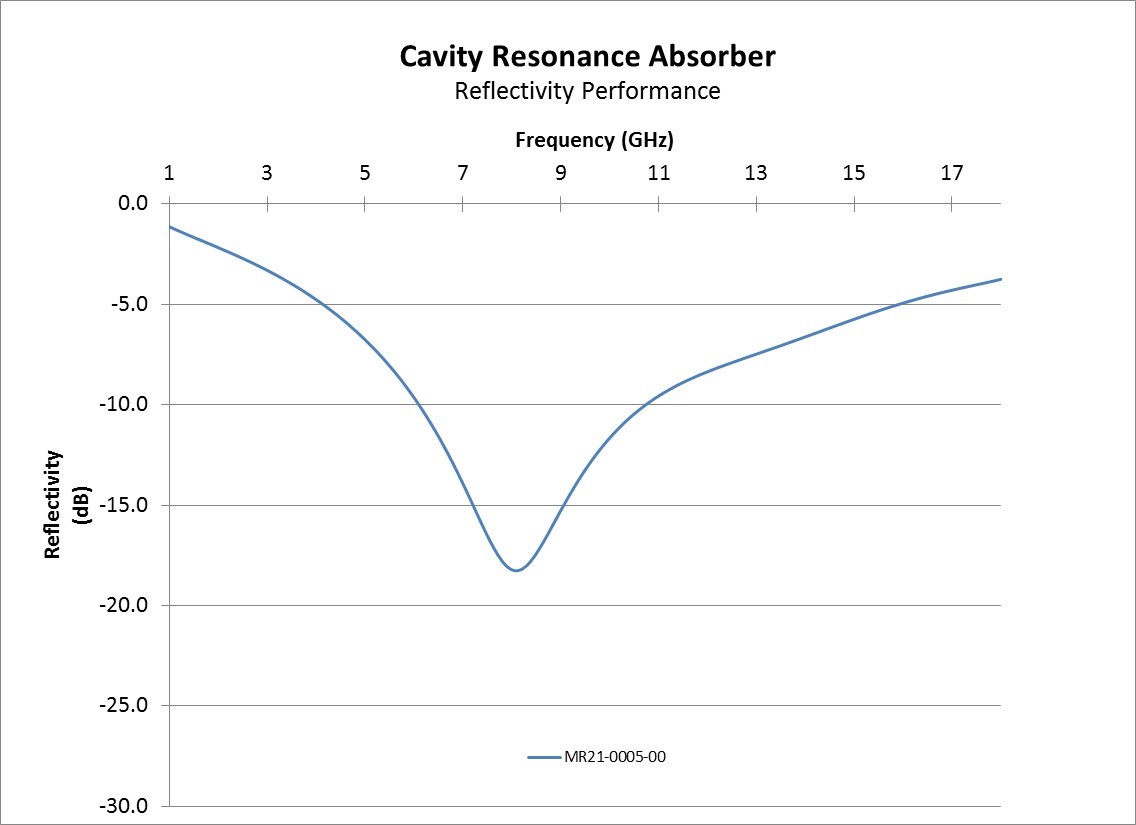

The performance plot above illustrates the typical reflection loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.

Typical Properties:
Thickness: 0.060″ (1.5mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Dark Grey
Elastomer: Silicone
Operating Temperature: -60°F to 325°F
Flammability Rating: UL94 V-0 (File # E348216)
Hardness: Shore A 60-80
Sheet Sizes: 12″ x 12″, 24″ x 24″

Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)

Additional information

Weight 10 lbs
Dimensions 24 × 24 × 0.125 in
Adhesive

Yes
Frequency

05 to 9 GHz
Thickness

0.060" (1.52mm)
Product Type

Cavity Resonance
Product Size

24"x24" (610x610mm)
Frequency Range

1 to 18 GHz
Thickness Range

0.041" – 0.080"
