$120.82

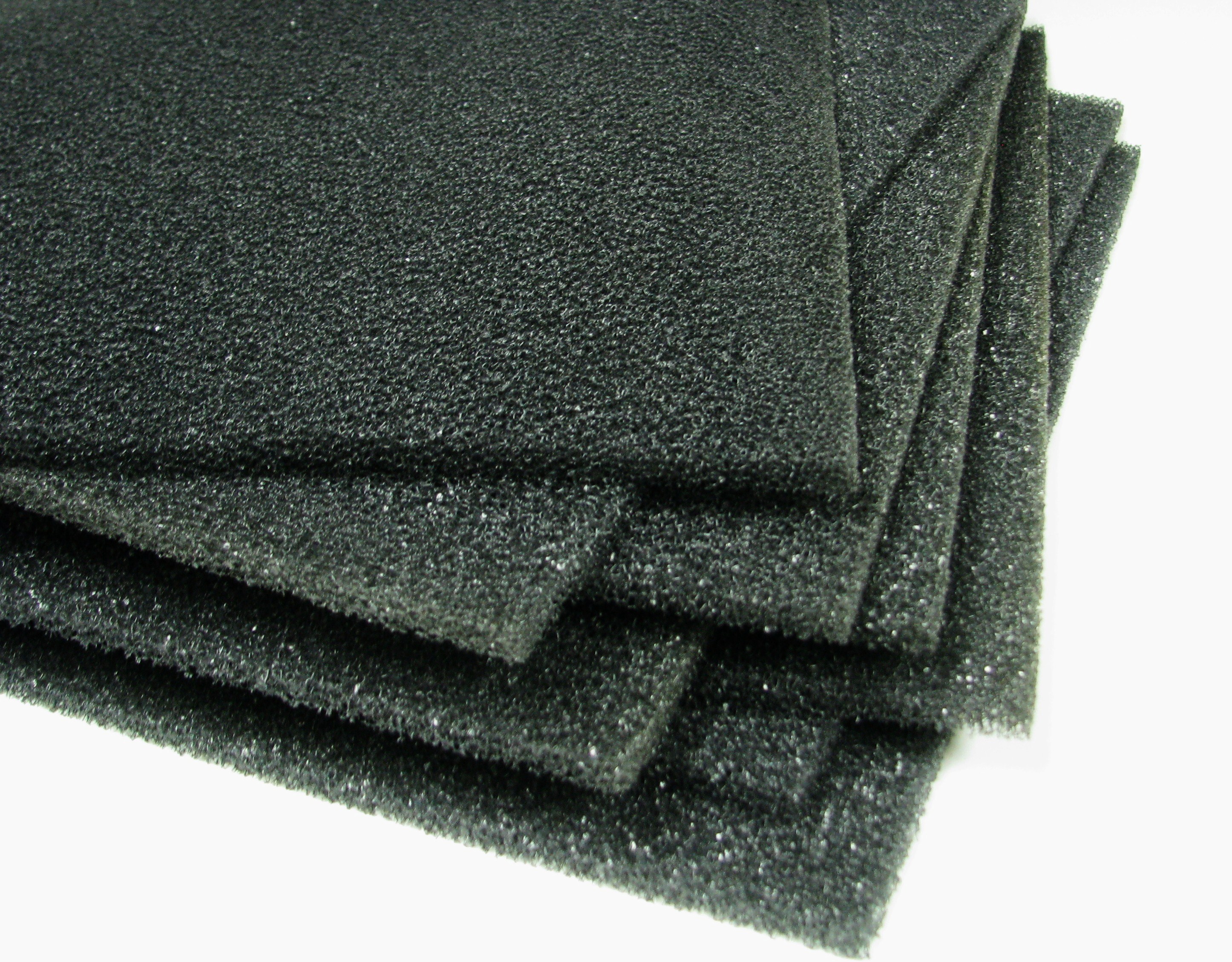

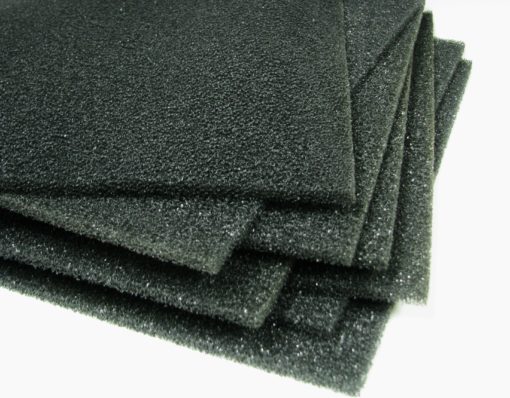

MAST Technologies’ Reticulated Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband loss at microwave frequencies. Reticulated Foam Absorbers are designed with a continuous gradient coating to exhibit high reflection loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Reticulated Foam Absorbers attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 18 GHz.
Sheet Size: 24″ x 24″
This product without adhesive backing: MF11-0003-00
Standard Lead-Time: Ships next business day
strong>Electrical Performance:

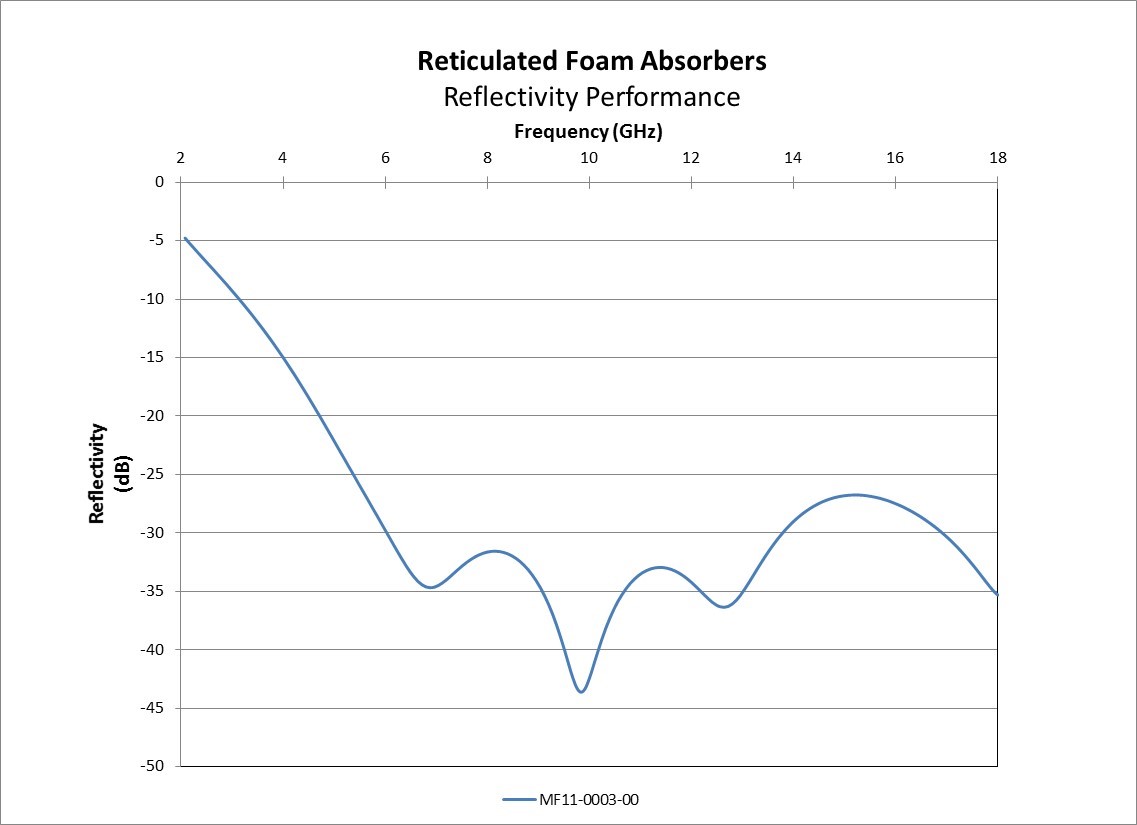

The performance plot below shows the typical reflectivity performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.
Typical Properties:
Thickness: 0.75″ (19.2mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Black
Operating Temperature: -60°F to 250°F
Flammability Rating: UL94-HF1 Available
Sheet Sizes: 24″ x 24″
Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)
| Weight | 1 lbs |
|---|---|
| Dimensions | 24 × 24 × 0.75 in |
| Adhesive | Yes |
| Frequency | 06 to 40 GHz |
| Thickness | 0.750" (19.05mm) |
| Product Type | Reticulated Foam |
| Product Size | 24"x24" (610x610mm) |
| Frequency Range | 1 to 18 GHz, 18 to 40 GHz |
| Thickness Range | 0.500" – 4.500" |
