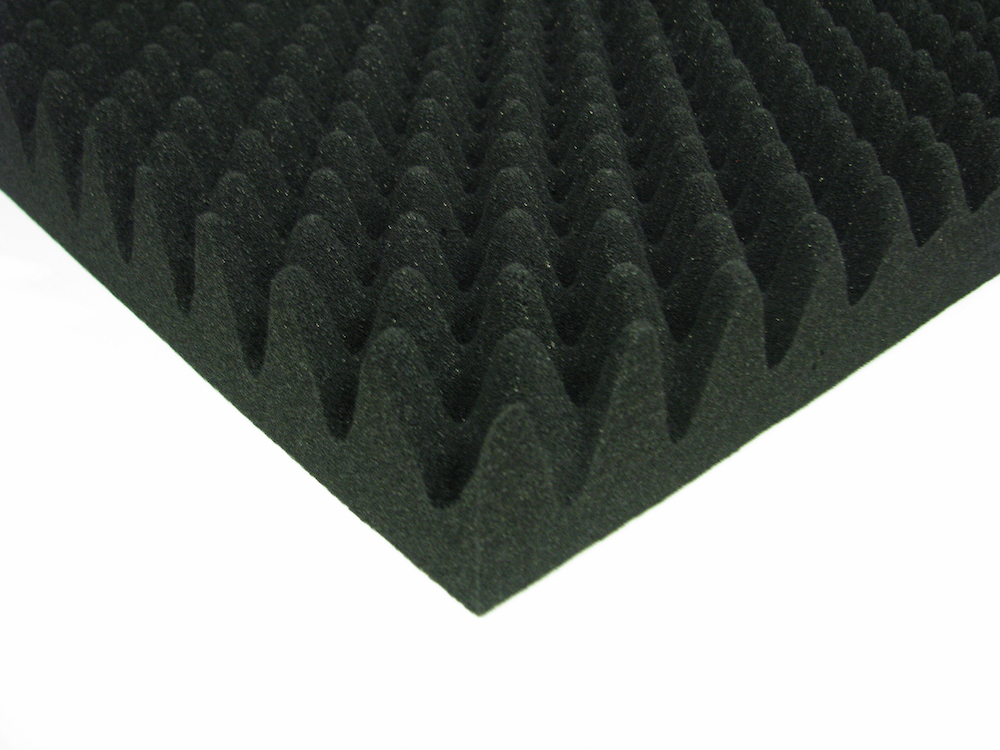

MAST Technologies’ Convoluted Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband reflection loss at microwave frequencies. Due to the shape of the cones on Convoluted Foam Absorbers, they exhibit high reflection loss and are intended to be applied to metal surfaces inside test boxes, housings, radomes, network enclosures, or antennae. Reticulated Foam Absorbers attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 18 GHz.
Sheet Size: 24″ x 24″
This product without adhesive backing: MF32-0002-00
Standard Lead-Time: Ships next business day
Electrical Performance:
The performance plot below shows the typical reflection loss performance of this material. For more information on the test set-up, please refer to Tech Bulletin 101.
Typical Properties:
Thickness: 3.07″ (76.9mm)
Adhesive Thickness: 0.005″ (0.12mm)
Color: Black
Operating Temperature: -60°F to 250°F
Flammability Rating: UL94-HF1 Available
Sheet Sizes: 24″ x 24″
Downloads
Technical Data Sheet
Material Safety Data Sheet (MSDS)
| Weight | 1 lbs |
|---|---|
| Dimensions | 24 × 24 × 2 in |
| Adhesive | Yes |
| Frequency | 04 to 40 GHz |
| Thickness | 3.000" (76.2mm) |
| Product Type | Convoluted Foam |
| Product Size | 24"x24" (610x610mm) |
| Frequency Range | 1 to 18 GHz, 18 to 40 GHz |
| Thickness Range | 0.500" – 4.500" |
