MF2: Lossy Foam Absorbers

MAST Technologies’ Lossy Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband insertion loss at microwave frequencies. Lossy Foam Absorbers are designed with a constant coating to exhibit high reflection loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Lossy Foam absorbers are the lowest cost solution for attenuating energy at frequencies from 1 GHz to 18 GHz.

Typical Applications

  • Antenna Pattern Performance
  • Sidelobe/backlobe reduction
  • Resonant Cavity Attenuation
  • EMI Reduction
  • Rx/Tx Antenna Isolation
  • Radar Cross Section Reduction

Standard Products

Click for product page or View All MF2 Products

Part Number Thickness (in/mm) dB Loss (@10 GHz)
MF22-0001-00 0.125/3.2 -8
MF22-0002-00 0.250/6.4 -21.5
MF22-0003-00 0.500/12.8 -35
MF22-0009-00 1.000/25.6 -50

Electrical Performance

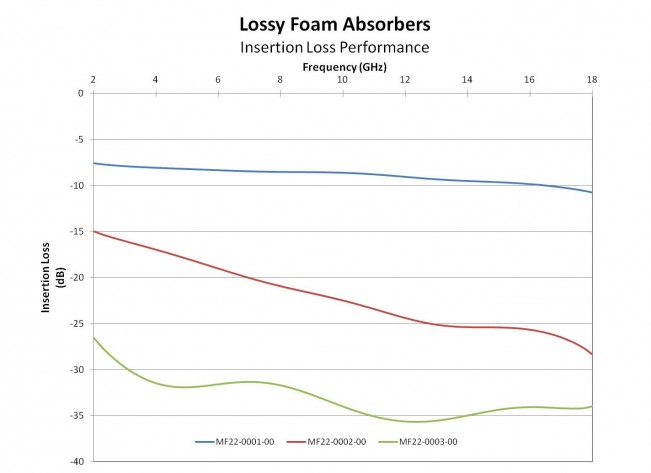

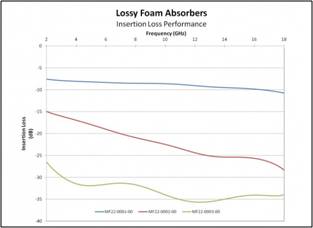

The performance plot below shows the performance of several of our lossy foam materials.
