MF1: Reticulated Foam Absorbers
MAST Technologies’ Reticulated Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband loss at microwave frequencies. Reticulated Foam Absorbers are designed with a continuous gradient coating to exhibit high reflection loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Reticulated Foam Absorbers attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 18 GHz.
Typical Applications
- Antenna Pattern Performance
- Sidelobe/backlobe reduction
- Resonant Cavity Attenuation
- EMI Reduction
- Rx/Tx Antenna Isolation
- Radar Cross Section Reduction
- Dual use air filter/EMI absorber
Standard Products
Click for product page or View All MF1 Products
| Part Number | Thickness (in/mm) | Frequency (GHz) |
| MF11-0002-00 | 0.50/12.8 | 8-40 |
| MF11-0003-00 | 0.75/19.2 | 6-40 |
| MF11-0004-00 | 1.00/25.6 | 5-40 |
| MF11-0005-00 | 1.25/32.0 | 5-40 |
Electrical Performance

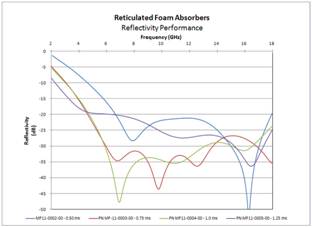

The performance plot below shows the performance of several of our reticulated foam materials.
