MF3: Convoluted Foam Absorbers

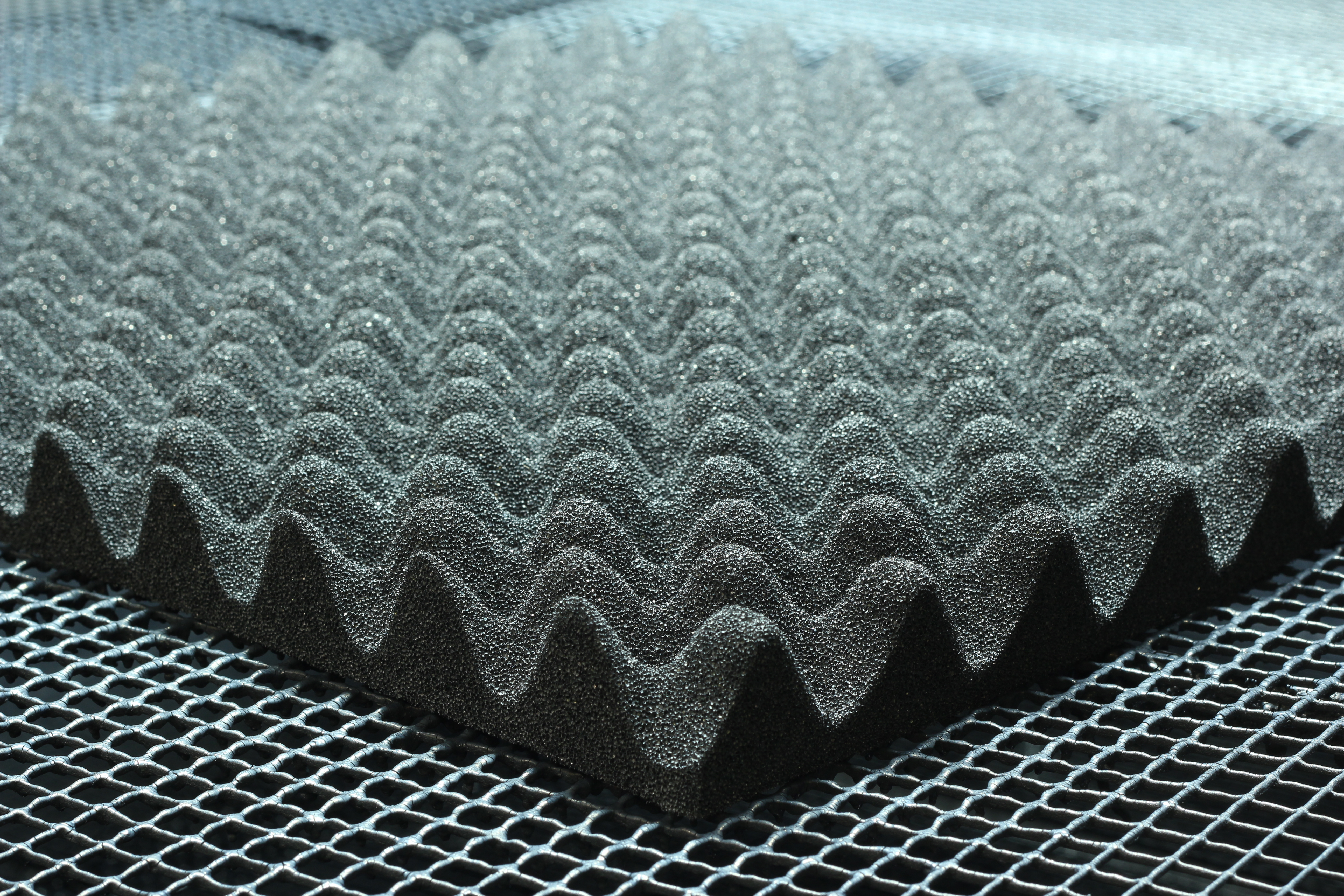

MAST Technologies’ Convoluted Foam Absorber product series is a lightweight conductive carbon loaded sheet stock providing broadband reflection loss at microwave frequencies. Due to the shape of the cones on Convoluted Foam Absorbers, they exhibit high reflection loss and are intended to be applied to metal surfaces inside test boxes, housings, radomes, network enclosures, or antennae. Reticulated Foam Absorbers attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 18 GHz.

Typical Applications

  • RF Test Boxes/Fixtures
  • Antenna Pattern Performance
  • Sidelobe/backlobe reduction
  • Resonant Cavity Attenuation
  • EMI Reduction
  • Rx/Tx Antenna Isolation
  • Radar Cross Section Reduction

Standard Products

Click for product page or View All MF3 Products

Part Number Thickness (in/mm) Frequency (GHz)
MF32-0001-00 1.50/38.4 10-40
MF32-0002-00 3.00/76.9 4-40

Electrical Performance

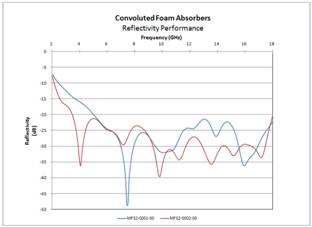

The performance plot below shows the performance of several of our convoluted foam materials.
